Product Overview

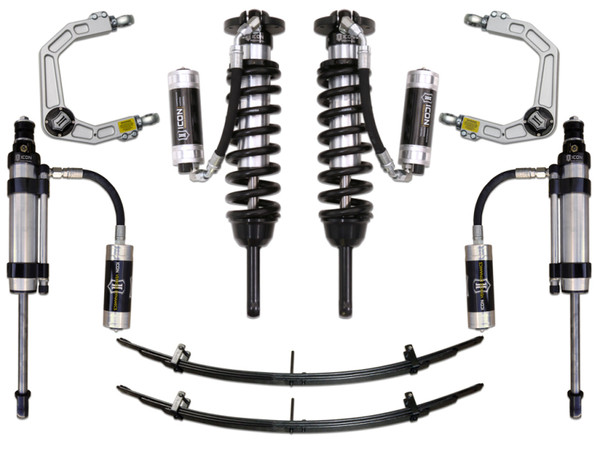

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. 2.5 Series Omega Bypass rear shocks combine vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment to give end-users ultimate control of the performance and ride quality of the rear of the Tacoma. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
This Part Fits:
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2015 | Toyota | Tacoma | Base |
| 2016-2023 | Toyota | Tacoma | Limited |
| 2005-2015 | Toyota | Tacoma | Pre Runner |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2023 | Toyota | Tacoma | Trail Special Edition |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2015,2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
| 2005-2013 | Toyota | Tacoma | X-Runner |
