RockJock Johnny Joint Rod End 2in Forged 1.600in X .562in Ball 1in-14 RH Thread Shank Ext. Greased - CE-9112N-13

(No reviews yet) Write a Review
$66.00
SKU:
ROKCE-9112N-13
UPC:
810038150987
Availability:
This part is back-ordered therefore shipping time will vary.
MPN:
CE-9112N-13

Product Overview

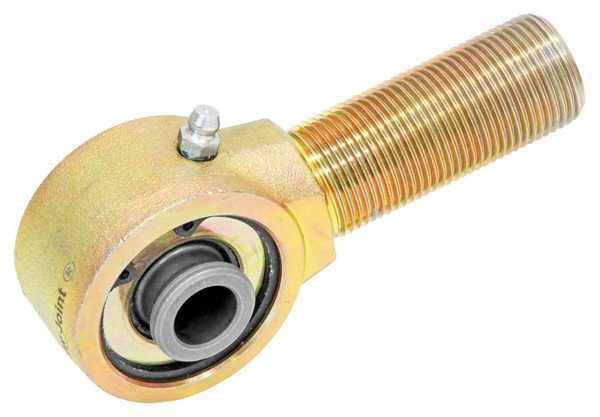

RockJocks narrow forged Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 1.600 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
