RockJock TJ/LJ/XJ/MJ Johnny Joint Trac Bar Front Bolt-On Adjustable Greasable - CE-9120TJS

(No reviews yet) Write a Review
$466.00
SKU:
ROKCE-9120TJS
UPC:
810038152615
Availability:
Regularly stocked product
MPN:
CE-9120TJS

Product Overview

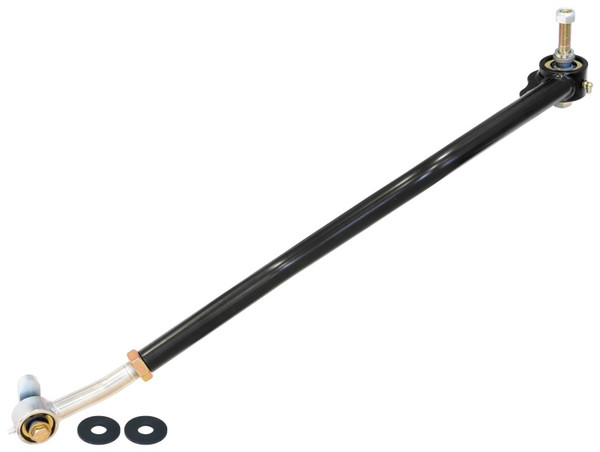

RockJocks Johnny Joint adjustable front trac bar for the TJ/LJ/XJ/MJ/ZJ features an offset Johnny Joint rod end that puts the bar further forward providing more clearance between the diff and the trac bar. Other features include a narrow 2 1/2 in. Johnny Joint at the frame end for maximum articulation capabilities, 1 1/4 in. x .250 wall 4130 chrome moly construction, a welded in gusset from the bar to the frame Johnny Joint, adjustable Johnny Joint rod end at the axle housing end and semi-gloss black powder coat finish. Some drilling is required for installation. The supplied frame bolt is a 5/8 in., and the supplied housing bolt is 1/2 in. Both of these holes must be drilled to size to accommodate the heavier duty hardware. A heavy duty nut plate kit is supplied for the housing end. NOTE: This trac bar is intended to be used with a minimum of 2 in. of lift. It may work on vehicles with less lift with Dana 30 frontends, however, on vehicles with no lift and a Dana 44, 9 in. or 60 frontend, you may run into a clearance issue. Always check fitment before drilling!

This Part Fits:

YearMakeModelSubmodel
1984-1993JeepCherokeeBase
1991-1992JeepCherokeeBriarwood
1985-1988JeepCherokeeChief
1996,1998-2001JeepCherokeeClassic
1993-1997JeepCherokeeCountry
1985-1992JeepCherokeeLaredo
1987-1992,1998-2001JeepCherokeeLimited
1985-1990JeepCherokeePioneer
1994-2001JeepCherokeeSE
1989-2001JeepCherokeeSport
1987-1992JeepComancheBase
1987-1988JeepComancheChief
1986JeepComancheCustom
1988-1992JeepComancheEliminator
1987-1988JeepComancheLaredo
1987-1992JeepComanchePioneer
1986JeepComancheX
1986JeepComancheXLS
1998JeepGrand Cherokee5.9 Limited
1993JeepGrand CherokeeBase
1993-1998JeepGrand CherokeeLaredo
1993-1998JeepGrand CherokeeLimited
1995,1997JeepGrand CherokeeOrvis
1994-1995JeepGrand CherokeeSE
1997-1998JeepGrand CherokeeTSi
2006JeepWrangler65th Anniversary Edition
2003-2006JeepWranglerRubicon
1997-2004JeepWranglerSahara
1997-2006JeepWranglerSE
1997-2006JeepWranglerSport
2004-2006JeepWranglerUnlimited
2005-2006JeepWranglerUnlimited Rubicon
2002-2006JeepWranglerX
